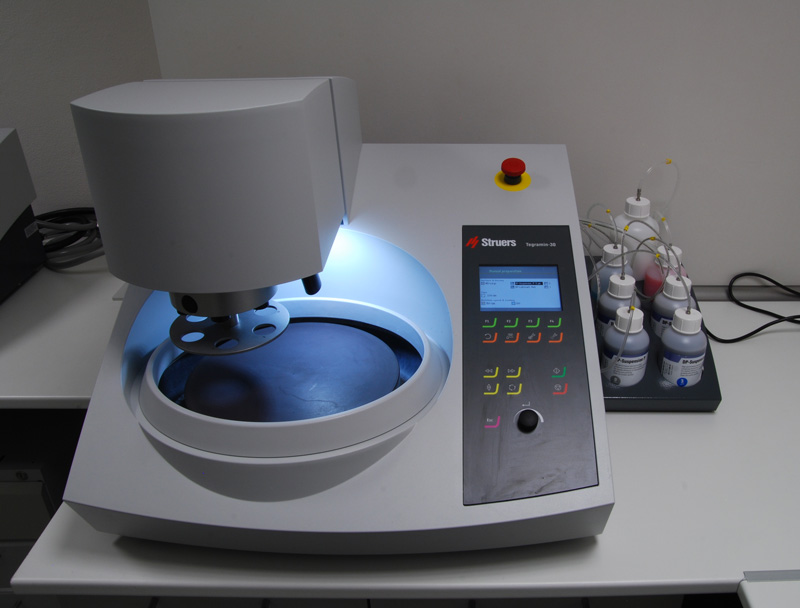

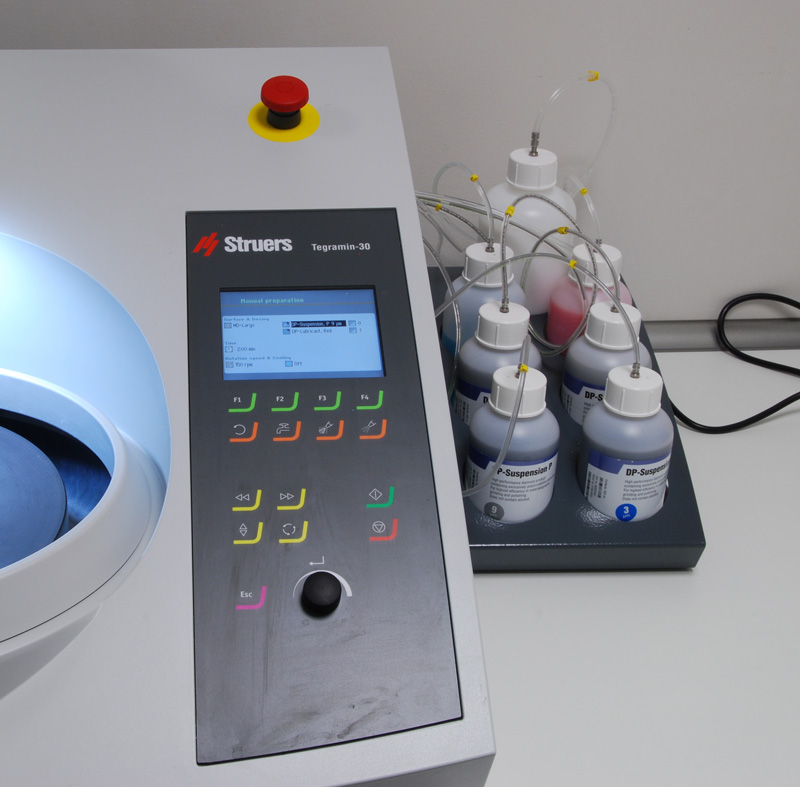

Semiatomated machine for preparation of materialographic samples by mechanical grinding and polishing. The clamping system accepts samples embedded in 30 mm stubs, produced by Citopress 10 or Citovac machine. Minimum number of samples to be processed is one; maximum number is 6 samples per run. The machine is quipped with automatic six-line dosing system for process fluids (wetting agent and polishing suspensions) and one dosing line dedicated to supply chemically active polishing fluids.
| Diameter | 300 mm | |
|---|---|---|
| Speed | 40–600 rpm, variable | |
| Rotational direction | counter-clockwise | |
| Disc motor | 750 W | |
| Torque | cont. at < 300 rpm | 23.8 Nm |
| cont. at 600 rpm | 11.9 Nm | |
| Max. | > 40 Nm |
| Speed | 50–150 rpm, variable |
|---|---|
| Rotational direction | clockwise, counter-clockwise |
| Head motor | 160 W |
| Torque | 10 Nm |
| MD Piano | for plane grinding and fine grinding of materials (HV 150–2000) |
|---|---|
| MD Mezzo | for plane grinding of titanium alloys |
| MD Molto | for plane grinding of aluminium alloys |
| SiC foil 180 | for wet grinding of materials (HV 30–800) |
| SiC foil 1200 | for wet grinding of materials (HV 30–800) |
| MD Gekko | adapter for use with SiC Foil or self adhesive consumables |
| MD Allegro | composite disc for one-step fine grinding of materials (>HV 150) |
| MD Largo | composite disc for one-step fine grinding of ductile materials (>HV 40) |
| MD Dur | polishing cloth for fine grinding and polishing |
| MD Nap-T | polishing cloth for final polishing |
| MD Chem | polishing cloth for final polishing |
| DP-Suspension P 9 μm | diamond suspension for materialographic grinding and polishing |
|---|---|
| DP-Suspension P 3 μm | diamond suspension for materialographic grinding and polishing |
| DP-Suspension P 1 μm | diamond suspension for materialographic grinding and polishing |
| DP-Suspension P 1/4 μm | diamond suspension for materialographic grinding and polishing |
| OP-S Suspension | colloidal silica suspension for final polishing |
| OP-AN Suspension | neutral alumina suspension for final polishing |
| DP-Lubricant Blue | cooling and lubricating liquid for fine grinding and diamond polishing |
| DP-Lubricant Red | lubricating liquid for final diamond polishing of softer materials |
