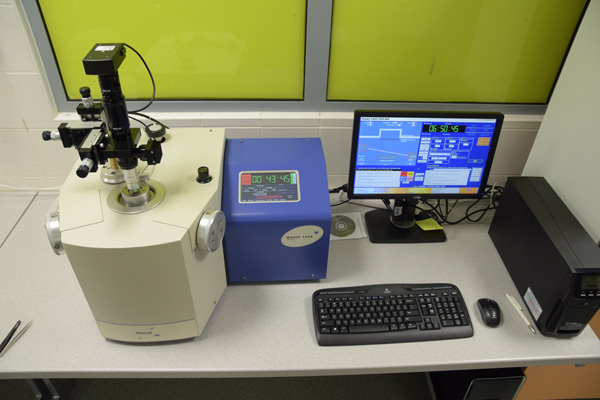

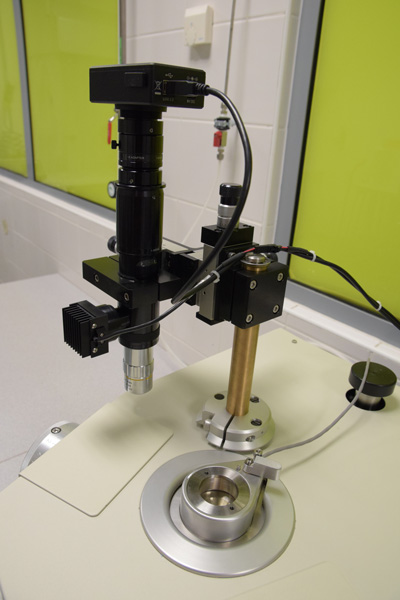

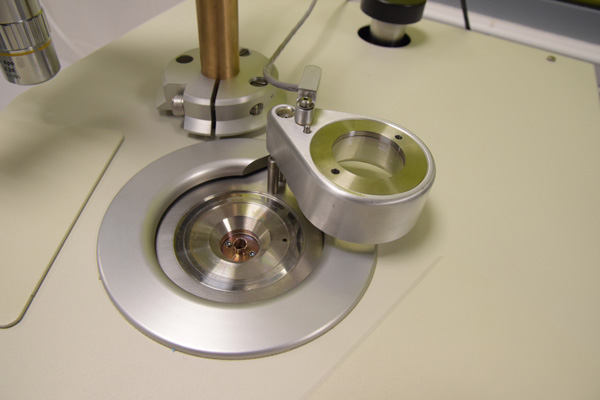

Machine for creating thin electron transparent specimens for TEM. TEM Mill incorporates two independently adjustable ion sources, liquid nitrogen specimen cooling, automatic gas control, and a vacuum system for ultra-clean specimen processing. The specimen holder accommodates double-sided milling to 0° without specimen shadowing. Tilt angles are adjustable in the range from –10° to +10°. In addition to full specimen rotation with ion beam sequencing, the programmable rocking angle control is available. The TEM Mill includes a microscope with CCD camera for better specimen viewing and polishing process control.
| Ion source | Two ion guns, single controllable |
|---|---|
| Ion source energy | from 100 eV to 6 keV |
| Beam current density | up to 10 mA/cm2 |
| Process gas | Argon, 99,999 % purity |
| Milling angle range | –10° to +10° |
|---|---|
| Specimen rotation | available with motion sequencing |
| Specimen rocking | available |
