Metallographic saw Labotom 5

Guarantor

Jiří Holas

Description

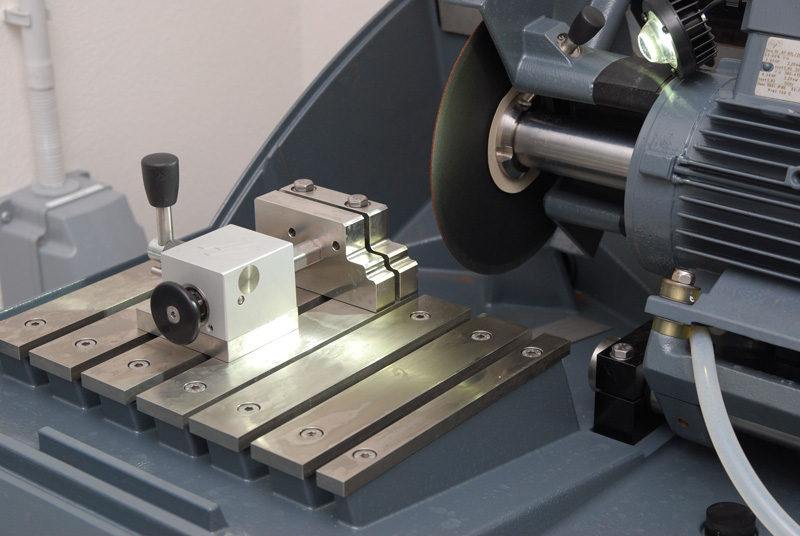

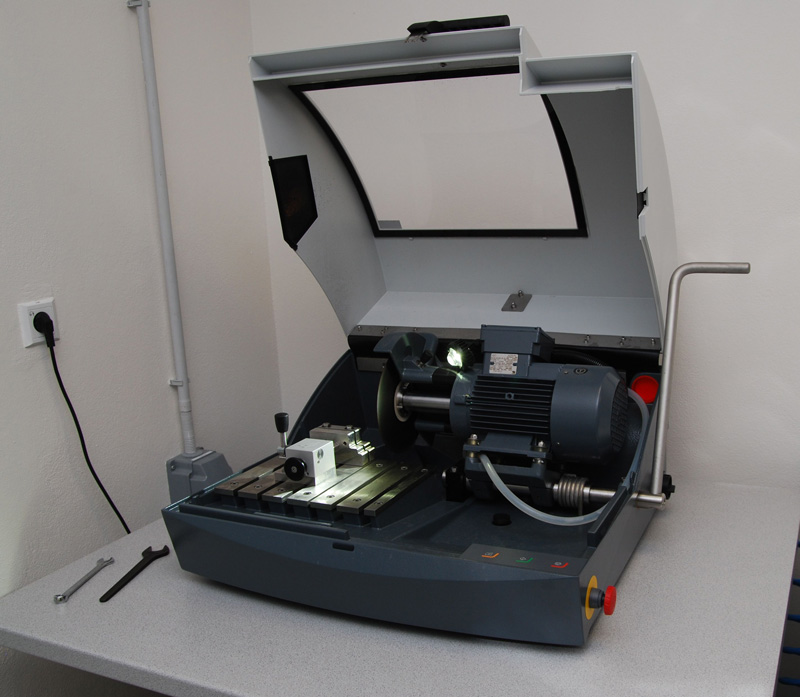

Manual cut-off machine for 250 mm diameter cut-off wheels for rough cutting. The machine is equipped with simple control panel consisting of start, stop and flushing cleaning water buttons. The cutting table is 316 mm wide and 225 mm depth with five 10 mm T-slots for fixing workpieces holders. Labotom-5 allows to cut-off almost all kinds of materials

Photogallery

Specification

Cutting rotational speed	2845 rpm (50 Hz), 3450 rpm (60 Hz)
Cut-off wheel (250 mm) speed	37.2 m / s (50 Hz), 45.1 , m / s (60 Hz)
Cut-off wheel diameter	250 mm
Cut-off wheel thickness	1–1.5 mm
Cut-off wheel hole	32 mm
Flange for cut-off wheel diameter	62.5 mm

Cutting chamber

Width	310 mm
Height	49 mm
Width (left side)	Passage for protruding workpieces	120 mm
Height (left side)		42 mm
Diameter (left side)		90 mm
Width (right side)		16 mm
Height (right side)		16 mm

Cutting table

Width	316 mm
Depth	225 mm
T-slots	10 mm, 5 pcs
Max cutting diameter	90 mm

Available cut-off wheels

60A25	cutting of extra hard ferrous metals (>HV 600)
40A25	cutting of medium hard ferrous metals (HV 300–450)
20A25	cutting of very ductile metals (e.g. titanium) (HV 70–400)
MOD25	cutting of ceramics (> HV 800) and minerals
