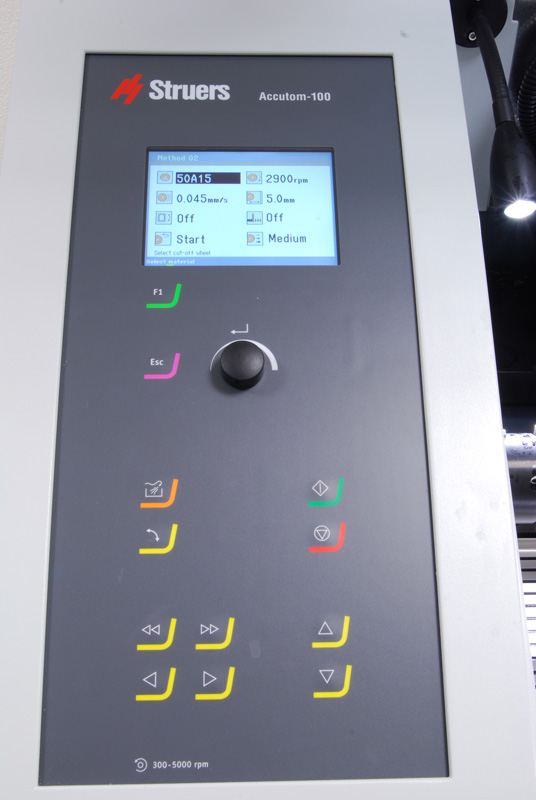

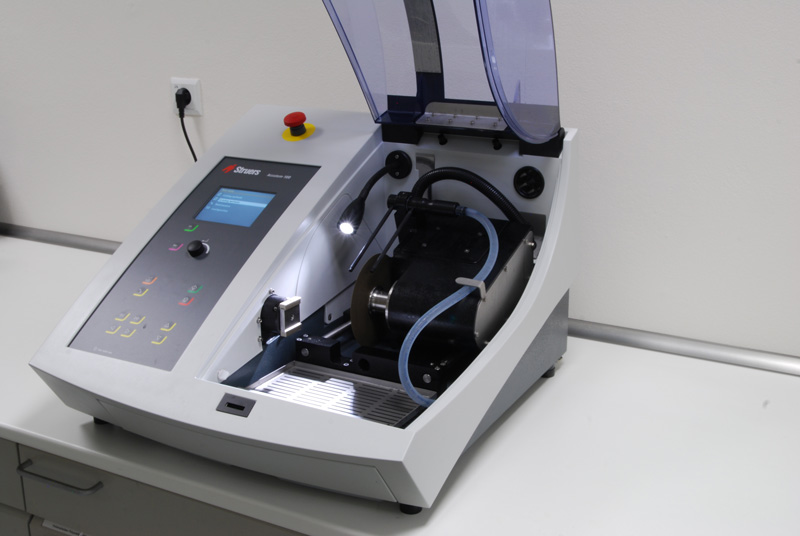

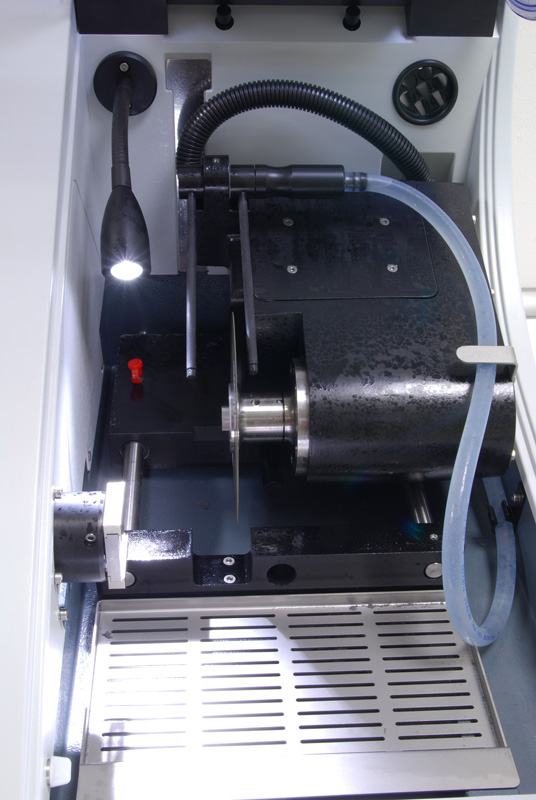

Cut-off machine for precise deformation-free cutting and grinding. Accutom 100 have built-in 100 methods and can be programmed to automatically cut series of slices from the sample. The machine is also equipped with sample rotation or oscillation. Pre-set constant feed speed is in the range of 0.005–3.00 mm/s. The motor provides variable cut-off wheel speeds from 300 up to 5000 rpm in steps of 100 rpm. The software will also compensate for the wheel thickness and for slight drift of the cut-off wheel. Accutom-100 can be used for target grinding of e.g. TEM plates as well.
| Specimen holder rotation and oscilation | yes |
|---|---|
| Automatic rotation of specimen holder | yes |
| Motor rotation speed | 300–5000 rpm |
| Griding feed speed | 0.5–7.5 mm/s |
| Cutting feed speed | 0.005–3 mm/s |
| Positioning speed | X = 10 mm/s, Y = 13 mm/s |
| Positioning range | X direction: 60 mm (precision 0.005 mm), Y direction: 110 mm (precision 0,1 mm) |
| Cut-off wheel | 75–150 mm, Arbor size: 12.7 mm |
|---|---|
| Length of cut-off specimen | 40 mm / 195 mm , for 25 mm diameter |
| Length of workpiece to be clamped | 250 mm |
| Workpiece width and height | 50 × 130 mm |
| Workpiece cross section | 54 mm without rotation / 108 mm with rotation |
| Cup wheel | 100–150 mm, Arbor size: 12.7 mm |
|---|---|
| Sample | 40 mm / 95 × 95 mm |
| 50A15 | cutting of hard ferrous metals (HV 500–800) |
|---|---|
| 10S15 | cutting of soft non-ferrous metals (HV 70–400) |
| MOD15 | cutting of ceramics and minerals (> HV 800) |
| MOP15 | diamond cup wheel for grinding of hard and brittle materials |
