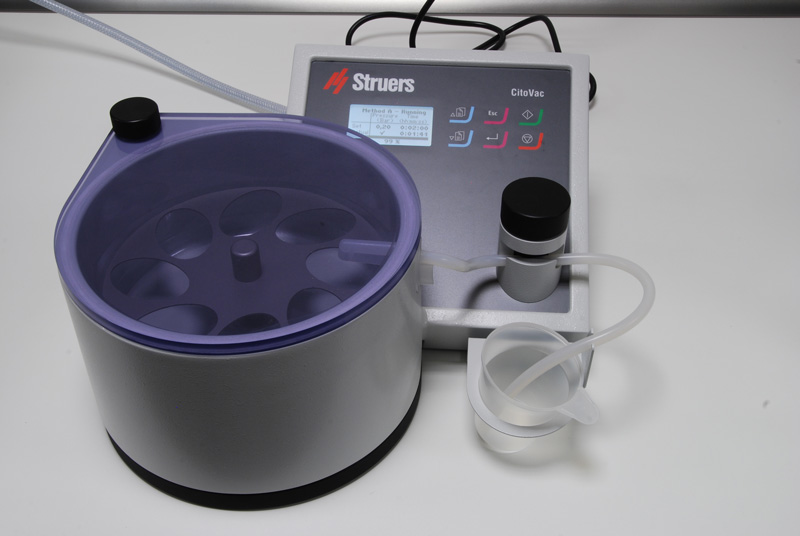

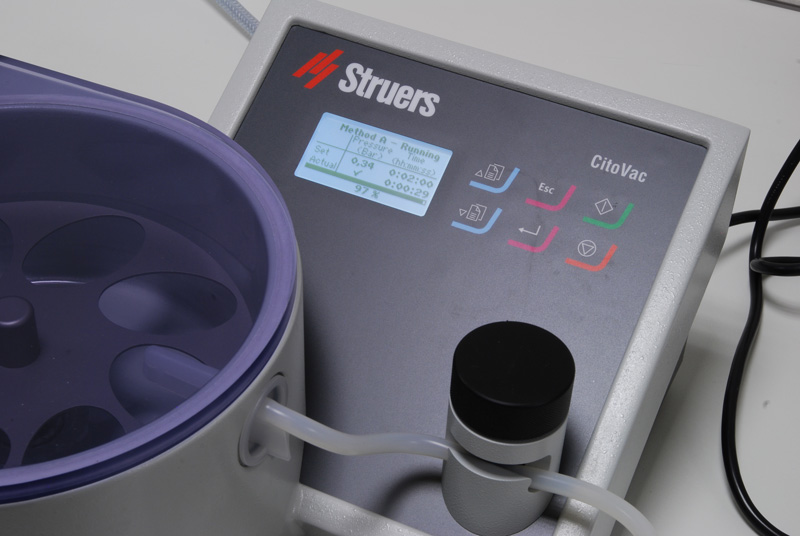

Vacuum impregnation equipment for mounting. CitoVac is equipped with a vacuum chamber and a operational panel. The impregnation material is supplied through a disposable tube and is distributed to the individual mounting cups. The vacuum time can vary by the control panel depending on number and size of the specimens. Citovac is used for porous materials, such as specimens for failure analysis with cracks, porous casts and composites, electronic components, ceramics and spray coatings.
| Compressed air | 4.5 – 6 bar |
|---|---|
| Consuption of compressed air | 12.5 l / min |
| Vacuum (at compressed air 6 bar) | –860 mbar |
| Width | Outer dimensions | 380 mm | |
|---|---|---|---|
| Depth | 370 mm | ||
| Height | 190 mm | ||
| Weight | 9.5 kg | ||
| Inner diameter | Vacuum chamber | Ø 200 mm | |
| Inner height | 100 mm | ||
